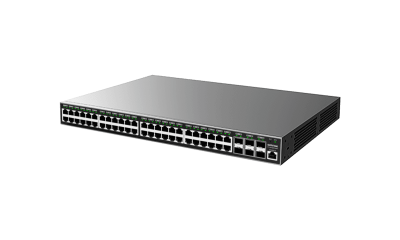

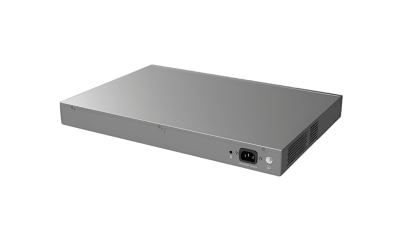

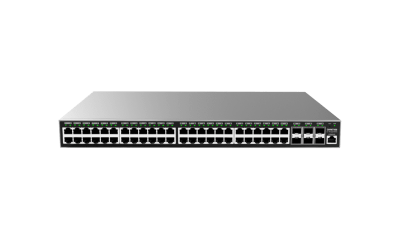

Network Switches GWN7806
Price: Contact
(*) Giá chưa bao gồm thuế VAT
- 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 network
Enterprise-Grade Layer 2+ Managed Network Switch
The GWN7806(P) is a high-performance layer 2+ managed network switch with 48 ports that allows small-to-medium enterprises to build scalable, secure, and smart business networks that are fully manageable
- 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 networks
- Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
- Built-in QoS allows for prioritization of network traffic
- Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices
Specifications
| Model | GWN7806 |
| Network Protocol | • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Gigabit Ports | • 48 |
| SFP+ Ports | • 6 |
| Console | • 1 |
| # of PoE Ports | / |
| Integrated Power Supply | • 60W |
| Maximum Output Power Per PoE Port | / |
| Max Total PoE Output Power | / |
| PoE Standards | / |
| Auxiliary Ports | • 1x Reset Pinhole |
| Forwarding Mode | • Store-and-forward |
| Total non-blocking throughput | • 108Gbps |
| Switching Capability | • 216Gbps |
| Forwarding Rate | • 160.704Mpps |
| Packet Buffer | • 16Mb |
| Switching | • 32K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP (pending) • 27 link aggregation • Spanning tree, 64 instances for STP/RSTP/MSTP |
| Routing | • Static routing |
| Multicast | • IGMP Snooping • MLD Snooping • MVR (pending) |
| QoS/ACL | • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 4K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | • DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43 |
| Maintenance | • CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection (pending) and loopback protection (pending) • Kensington Security Slot (Kensington Lock) support |
| Mounting | • Desktop, Rack-Mount(rack-mounting kits included) |
| LEDs | • 1x tri-color LED for device tracking and status indication • 54x green-color LEDs for data transferring |
| Fan | • 3 |
| Environmental | • Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) • Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions | • 440mm(L) x 301mm(W) x 44mm(H) |
| Unit Weight | • 4.0Kg |
| Package Content | • Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power Cord Anti-Trip, 1x Quick Installation Guide, 1x Console Cable(Optional) |
| Compliance | • FCC, CE, RCM, IC, UKCA |
